IPIL

Newly engineered design and efficient die-cast aluminium heat sink to ensure long life span.

IPIL 10
IPIL 15
IPIL 20
IPILL

High-end innovative compact LED recessed downlight for accentuation lighting application, specially designed qualitative-smoothly curved reflector ensure better visual comfort with an optimum light output ratio, excellent glare control, high efficient LED COB offering >90 lm/W, SDCM<2, machined aluminum trim heat sink with sand bak finishing, high reflectance aluminum reflector.

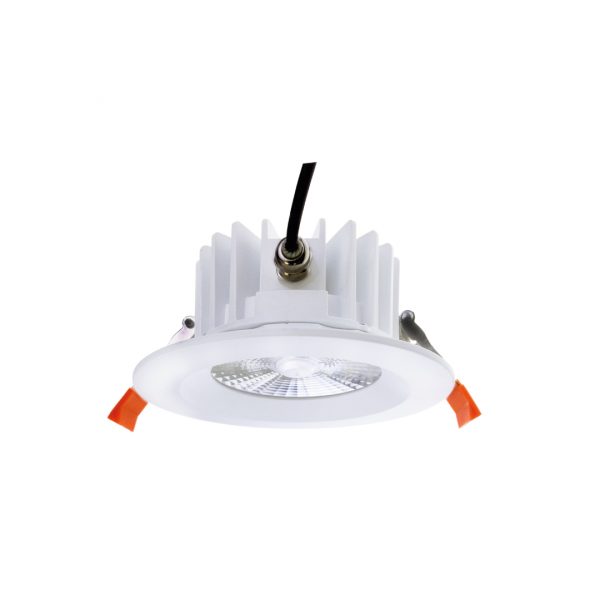

IPIL 10

COLOR TEMP. POWER LUMENS CODE
3000K 10W 850 lm INT04451-30K
4000K 900 lm INT04451-40K
5000K 900 lm INT04451-50K

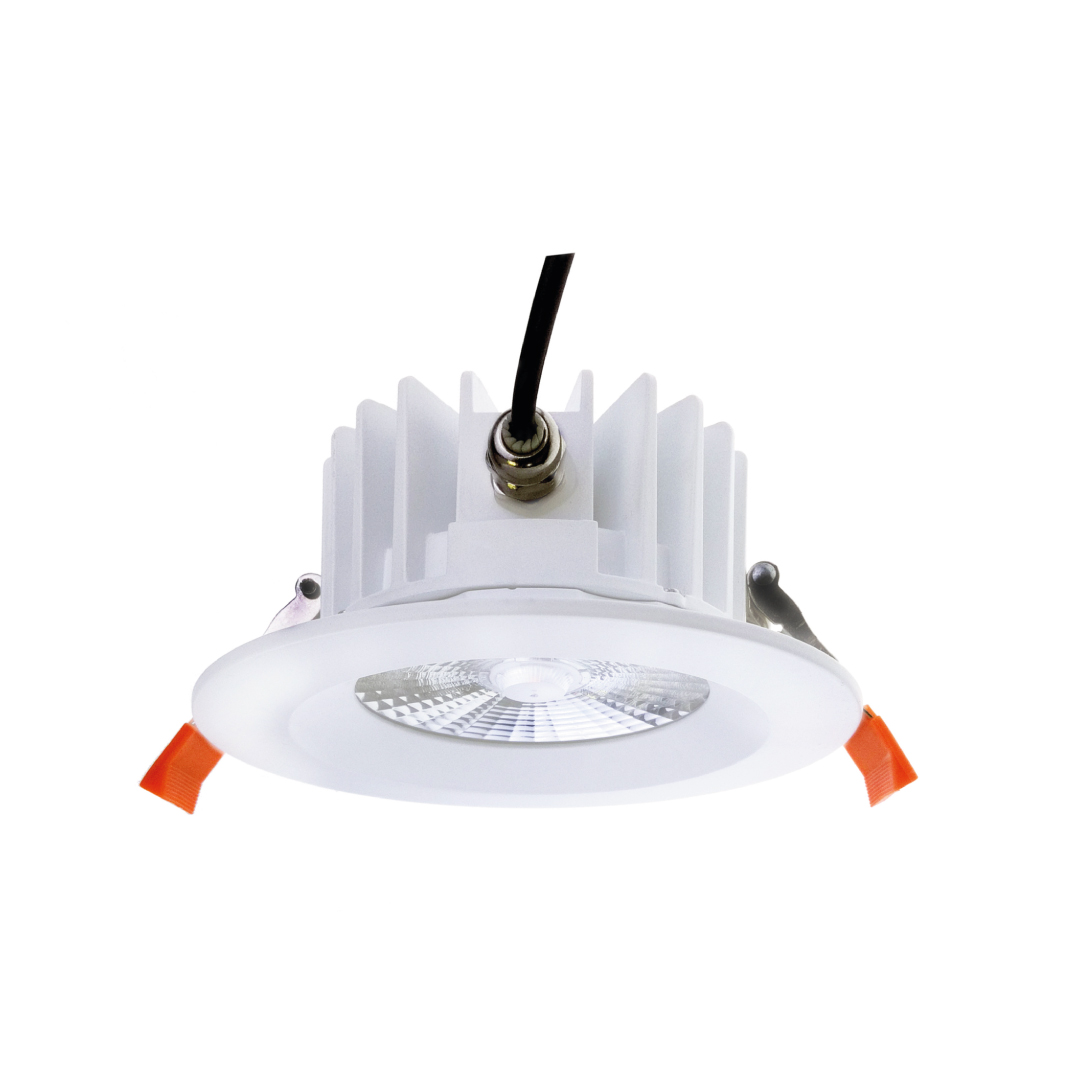

IPIL 15

COLOR TEMP. POWER LUMENS CODE
3000K 15W 1320 lm INT04454-30K
4000K 1350 lm INT04454-40K
5000K 1425 lm INT04454-50K

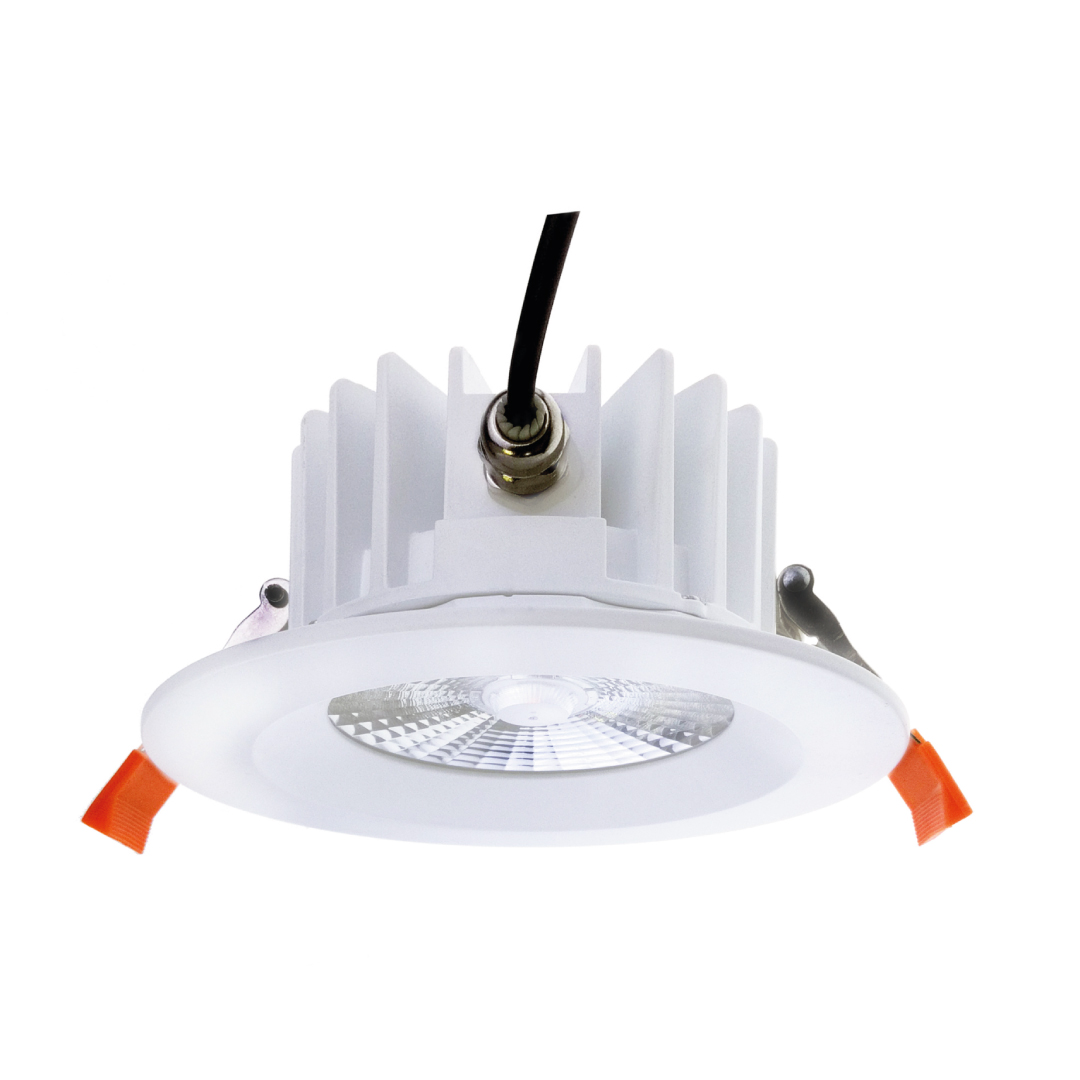

IPIL 20

COLOR TEMP. POWER LUMENS CODE
3000K 20W 1760 lm INT04457-30K
4000K 1800 lm INT04457-340K
5000K 1900 lm INT04457-50K

Technical Data Sheet
CE Certificate
User Manual
Photometric Files
