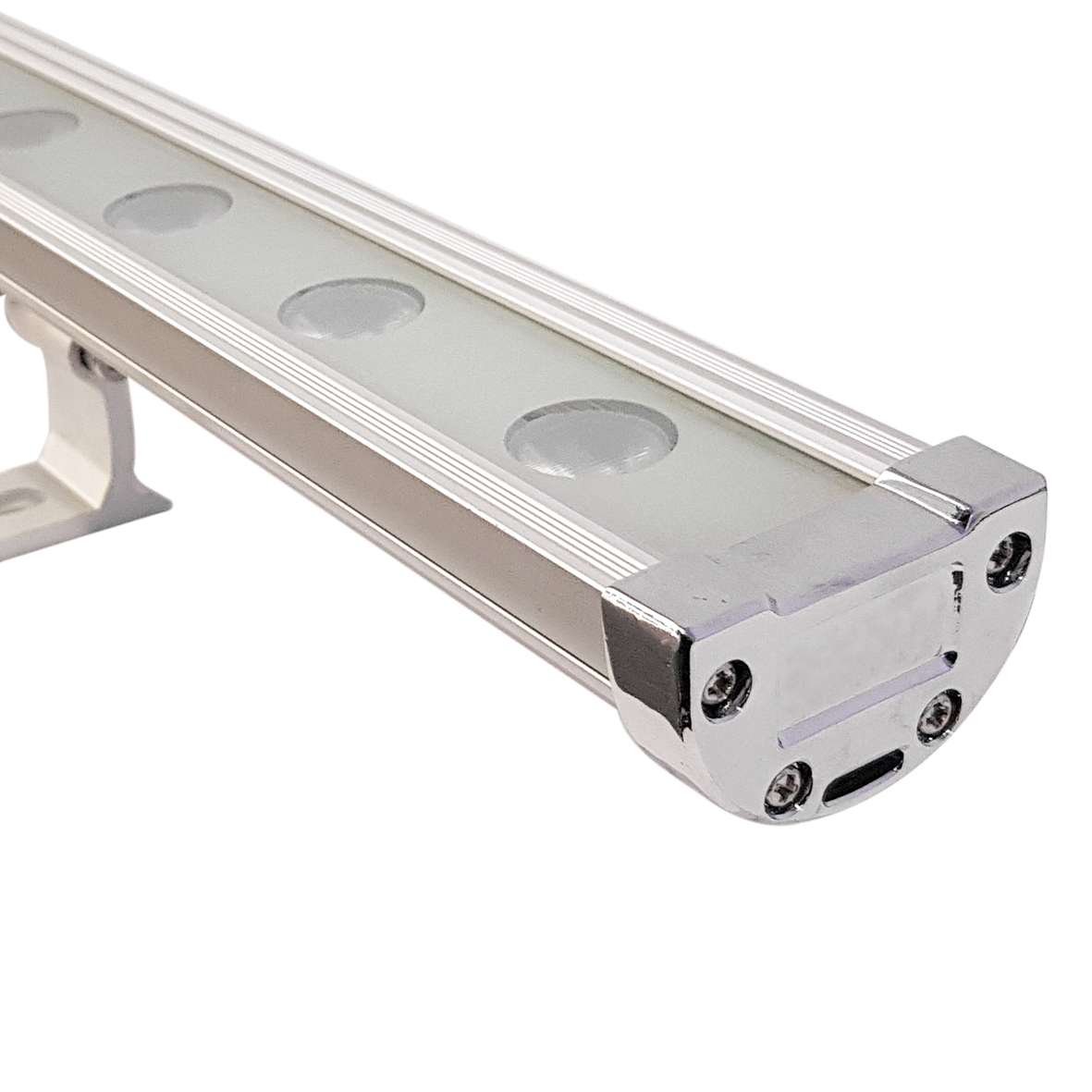

LINY

Higher performance linear wall washing solution with an extended range of selection.

Higher performance linear wall washing solution with an extended range of selection, novel structure without epoxy sealing, extruded aluminium body, tempered glass diffuser, stainless steel support, high heat dissipation and prolonged life span, multi-angle and polarized lens design to maximize utilization of light, flexible and adjustable bracket makes the beam angle more accurate and brings a more extraordinary grazing effect, optional baffle/visor structure for reduced glare and optimized lighting control, 24Vdc model and RGB versions are also available.

SPECIFICATIONS
DOWNLOADS

LINY 18

COLOR TEMP.	LED QTY.	POWER	LUMENS	CODE
2700K	18 pcs.	18W	1530 lm	EXT12031-27K
3000K			1584 lm	EXT12031-30K
4000K			1630 lm	EXT12031-40K

LINY 24

COLOR TEMP.	LED QTY.	POWER	LUMENS	CODE
2700K	24 pcs.	24 W	2000 lm	EXT12034-27K
3000K			2110 lm	EXT12034-30K
4000K			2160 lm	EXT12034-40K

LINY 30

COLOR TEMP.	LED QTY.	POWER	LUMENS	CODE
2700K	30 pcs.	30 W	2460 lm	EXT12037-27K
3000K			2550 lm	EXT12037-30K
4000K			2640 lm	EXT12037-40K
