SHUTTLE

Compact deep recessed IP44 rated LED downlight.

Compact deep recessed IP44 rated LED downlight, shallow mounting depth makes the downlight appear to almost float in the ceiling, higher visual comfort, die-cast aluminium body for better heat dissipation, vortex and convective thermal management technology, elegant design, UGR<15 low glare optics, higher visual comfort, accurate light distribution with high efficient COB LED, durable and robust structure, remote driver.

SPECIFICATIONS
DOWNLOADS

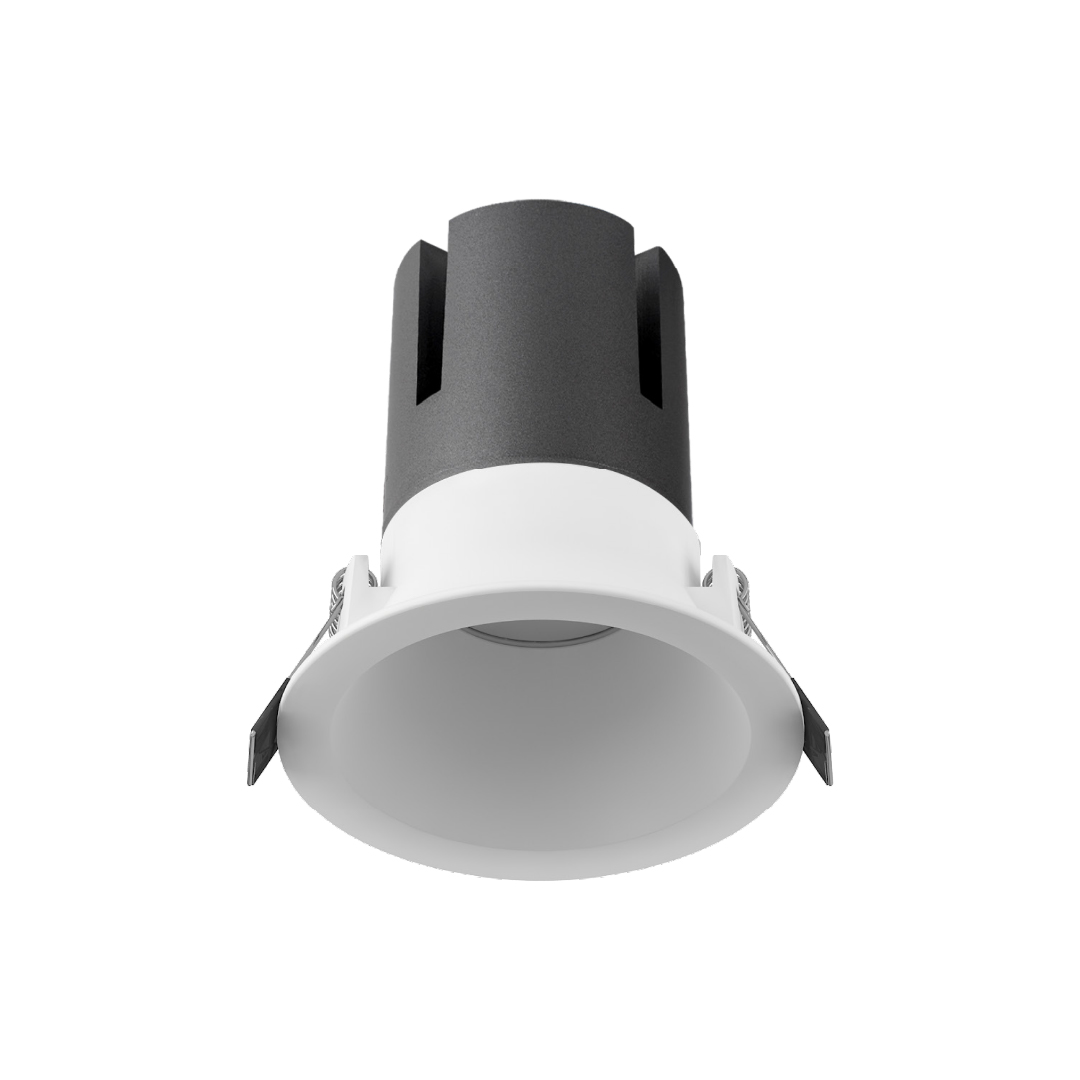

SHUTTLE 12

COLOR TEMP.	POWER	CRI	LUMENS	CODE
2700K	12W	80+	1060 lm	INT05106-27K
3000K	12W	80+	1100 lm	INT05106-30K
4000K	12W	80+	1140 lm	INT05106-40K

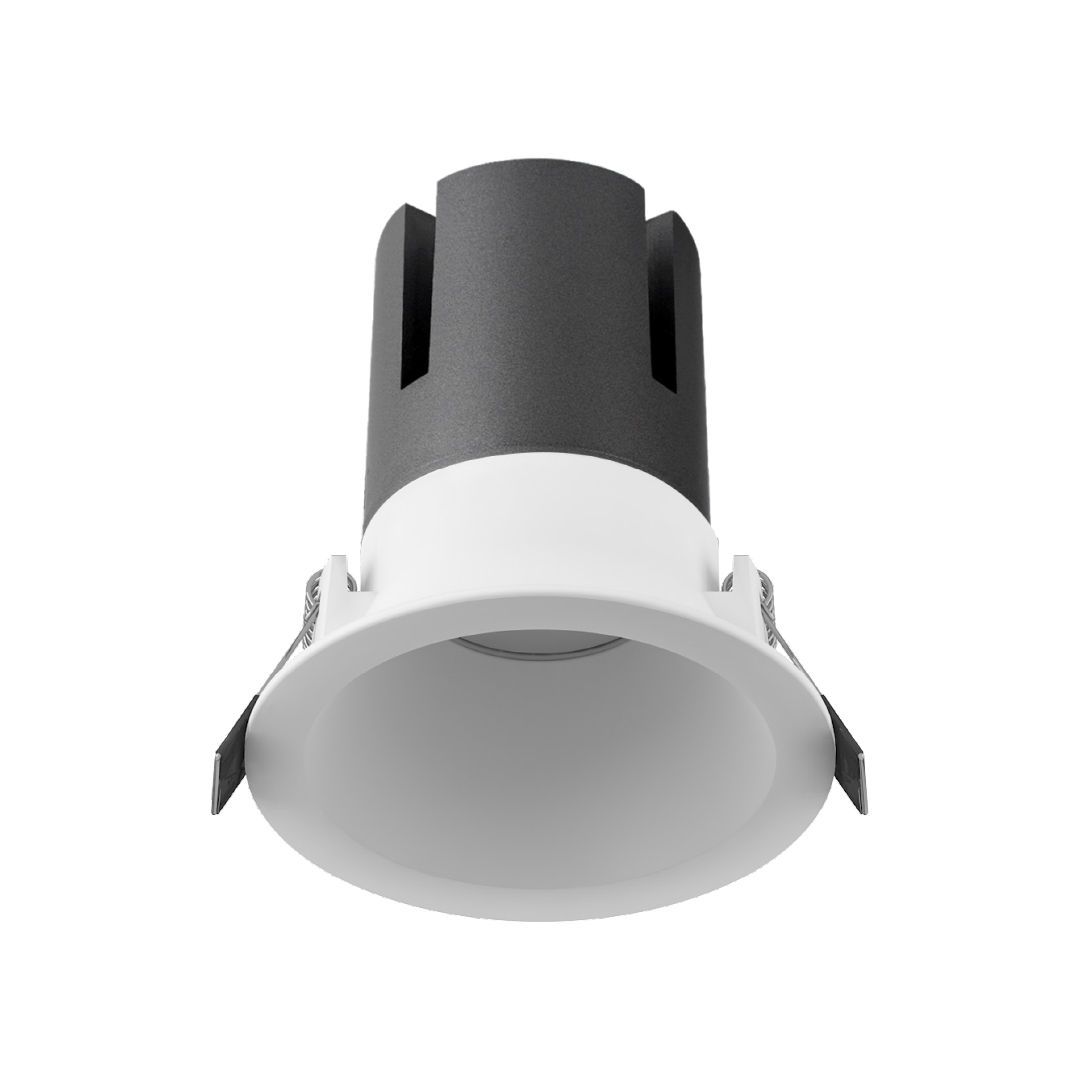

SHUTTLE 20

COLOR TEMP.	POWER	CRI	LUMENS	CODE
2700K	20W	80+	1780 lm	INT05110-27K
3000K	20W	80+	1880 lm	INT05110-30K
4000K	20W	80+	1920 lm	INT05110-40K

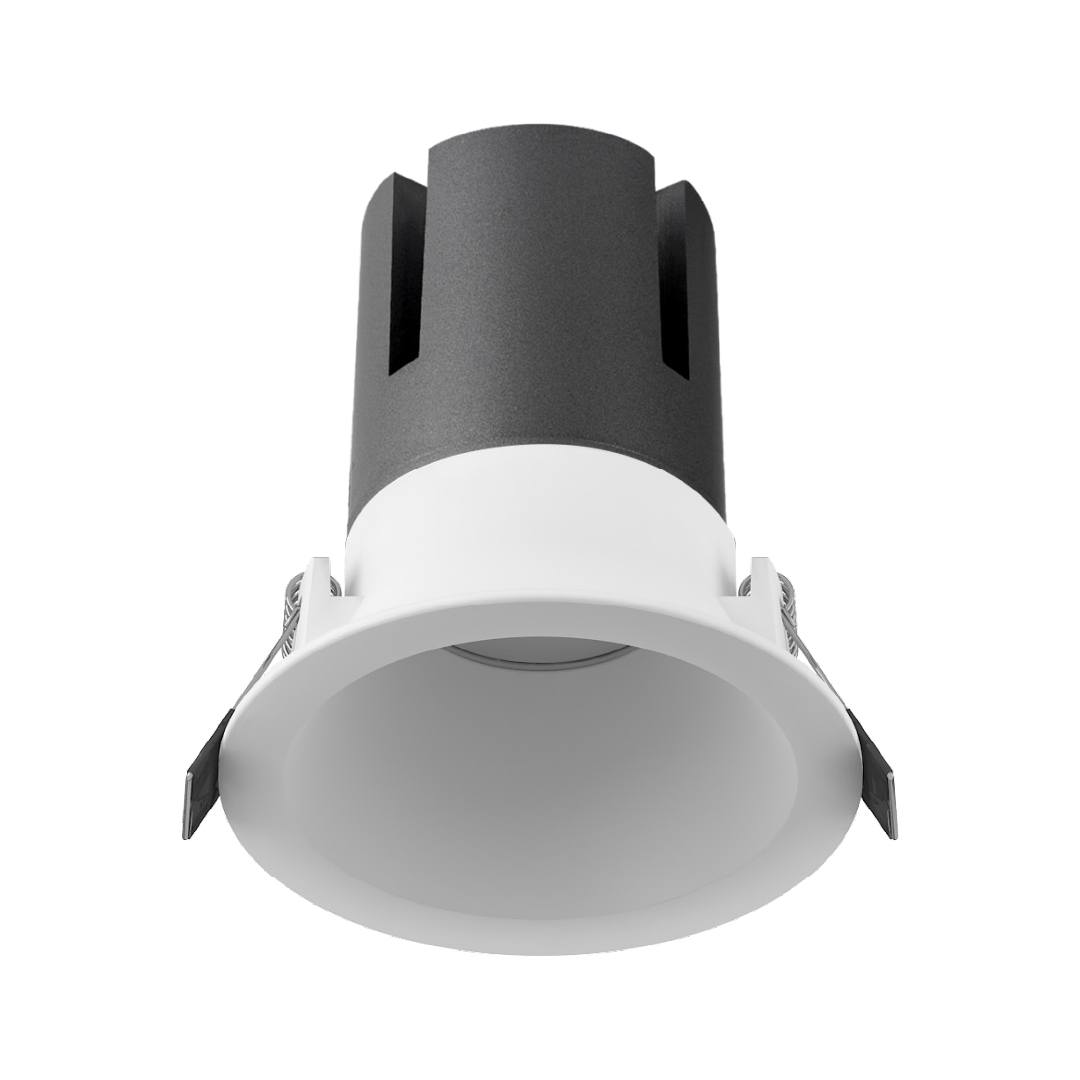

SHUTTLE 30

COLOR TEMP.	POWER	CRI	LUMENS	CODE
2700K	30W	80+	2670 lm	INT05112-27K
3000K	30W	80+	2760 lm	INT05112-30K
4000K	30W	80+	2880 lm	INT05112-40K

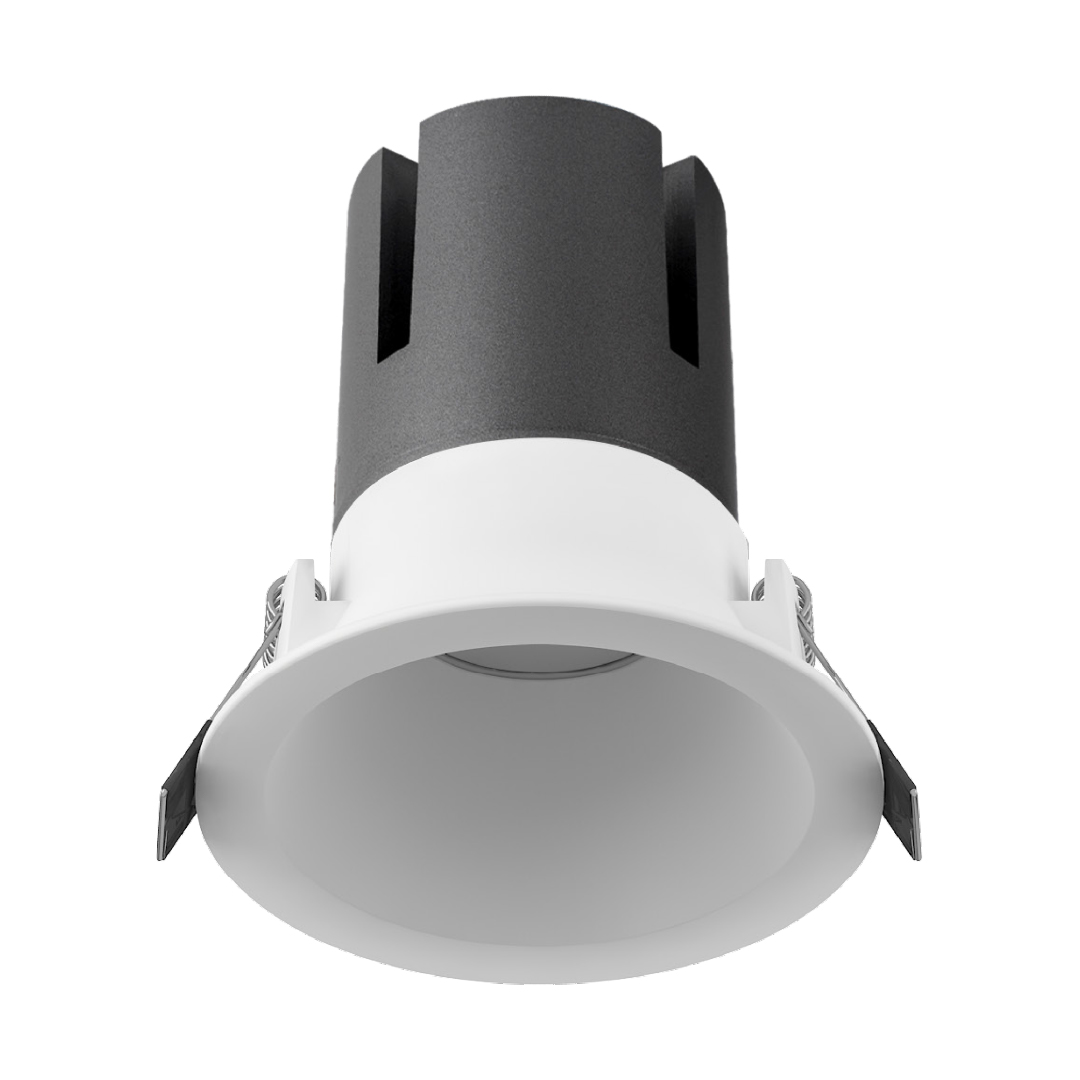

SHUTTLE 40

COLOR TEMP.	POWER	CRI	LUMENS	CODE
2700K	40W	80+	3520 lm	INT05115-27K
3000K	40W	80+	3720 lm	INT05115-30K
4000K	40W	80+	3840 lm	INT05115-40K
