B-TUBE

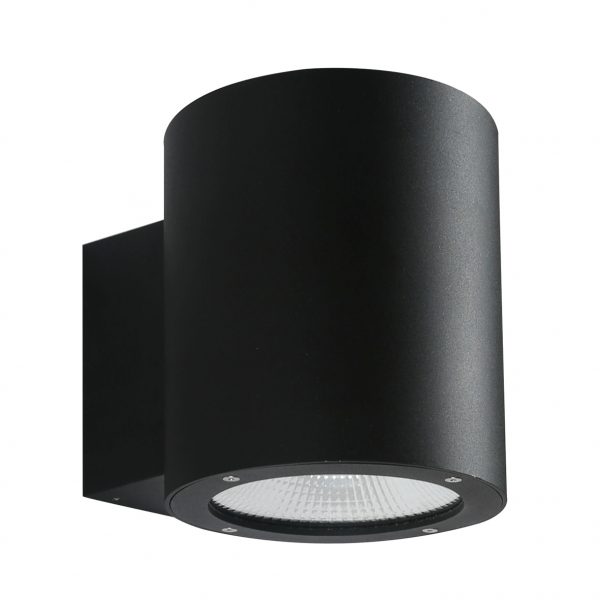

Durable, high sturdiness and robust ceiling/wall-mounted luminaire.

B-TUBE-I

B-TUBE-I 316L SS

B-TUBE-II 316L SS

B-TUBE-II

B-TUBE 316L SS

Durable, high sturdiness and robust ceiling/wall mounted luminaire, outstanding feature of this range is the option to have with 316L stainless steel mirror finish, with one directional or two directional options, wide choice of beam optics, extruded aluminum and die-cast aluminium housing, outdoor UV resistant powder coat finishing, 316L SS screws, fire resistant silicone seal waterproof gasket, 8mm thick toughened flush glass with trim, integrated driver, optional square version also available.

SPECIFICATIONS
DOWNLOADS

B-TUBE

COLOR TEMP.	POWER	LUMENS	CODE
3000K	20W	1758 lm	EXT05115-30K
4000K	20W	1820 lm	EXT05115-40K
3000K	30W	2638 lm	EXT05117-30K
4000K	30W	2730 lm	EXT05117-40K

B-TUBE-I

COLOR TEMP.	POWER	LUMENS	CODE
3000K	20W	1758 lm	EXT05119-30K
4000K	20W	1820 lm	EXT05119-40K
3000K	30W	2638 lm	EXT05121-30K
4000K	30W	2730 lm	EXT05121-40K

B-TUBE-II

COLOR TEMP.	POWER	LUMENS	CODE
3000K	2 x 20W	2 x 1758 lm	EXT05123-30K
4000K	2 x 20W	2 x 1820 lm	EXT05123-40K
3000K	2 x 30W	2 x 2638 lm	EXT05125-30K
4000K	2 x 30W	2 x 2730 lm	EXT05125-40K
